CN301

CN301

Experience music, together.

Combining the acclaimed Responsive Hammer III keyboard action and stunning SK-EX, SK-5, and EX grand piano sounds, with a powerful 4 speaker delivery system, Bluetooth® MIDI and Audio connectivity, useful USB audio features, and support for the latest apps, the CN301 delivers impressive specifications at an unbeatable price.

Gallery

Video

close

  • CN301 CN301 Premium Rosewood
  • CN301 CN301 Premium Satin Black
  • CN301 CN301 Premium Satin White

close

  • CN301 CN301 Premium Rosewood
  • CN301 CN301 Premium Satin Black
  • CN301 CN301 Premium Satin White

HIGHLIGHTS



HIGHLIGHTS

■  Class-leading Responsive Hammer III keyboard action
■  Ivory Touch key surfaces, triple sensor, let-off, counterweights
■  Progressive Harmonic Imaging sound with 88-key sampling
■  Shigeru Kawai SK-EX & Kawai EX concert grand piano sounds
■  High quality amplification, four speaker 40W delivery system

■  Integrated Bluetooth® MIDI and Audio wireless technology
■  MP3/WAV/SMF playback, record, and overdub to USB
■  Built-in classical etudes and Alfred lesson books
■  Spatial Headphone Sound for enhanced depth and realism
■  Attractive cabinet with cheekblock control panel and OLED display



CN301 CN301

Experience music, together.

Kawai’s latest CN series digital pianos provide a realistic full-sized keyboard, beautiful grand piano sounds, and headphone jacks that allow silent practise at any time of the day. These affordable instruments also offer a variety of inspiring features suitable for everyone in the family, and have attractive cabinet designs that will complement any room. The new CN series from Kawai – experience music, together.

TOUCH



TOUCH

CN301 CN301

The Touch of a Grand Piano:
Responsive Hammer III keyboard action

The CN301’s acclaimed Responsive Hammer III keyboard action has been developed to recreate the touch feeling of playing a Kawai grand piano.  Each key is authentically weighted using metal hammers which are ‘graded’ (i.e. slightly heavier in the bass region, and lighter in treble) just like an acoustic piano.  These weights also allow released keys to return to their original position without the aid of springs, resulting in a smooth, natural playing experience.



RHIII keyboard action

#1 Ivory Touch key   #2 Counterweights   #3 Triple sensor
#4 Let-off mechanism   #5 Weighted hammers   #6 Key pivot point



RHIII keyboard action

#1 Ivory Touch key   #2 Counterweights
#3 Triple sensor   #4 Let-off mechanism
#5 Weighted hammers   #6 Key pivot point



The chassis of the action mechanism is produced using reinforced materials that ensure the keyboard will remain rigid and stable when played with force.  In addition, a series of felt-lined rubber cushions absorb movement energy from the keys and hammers, helping to reduce unwanted ‘thump’ noise, and earning RHIII a reputation as one of the quietest digital piano keyboards available.


CN301
Ivory Touch key surfaces

The Responsive Hammer III keyboard action features Kawai’s authentic Ivory Touch key surface material, which possesses an attractive matte finish that is smooth but not slippery. These characteristics are not only beneficial in aiding finger control, but also contribute to the overall impression of playing a high quality, authentic piano.

CN301
88-key Counterweights

In addition to grade-weighted hammers, the Responsive Hammer III keyboard action also incorporates counterweights embedded within each black and white key. As with an acoustic piano, these additional weights help to balance the touch of the keyboard during pianissimo passages, while providing a feeling of greater substance and solidity when playing with force.


CN301
Triple sensor key detection

Supplementing its authentic touch weight, the RHIII keyboard action also includes Kawai’s latest triple-sensor key detection system for enhanced playing realism. This additional third sensor greatly improves responsiveness when striking the same keys repeatedly, allowing rapid trills etc. to sound much smoother and more acoustic piano-like when played.

CN301
Let-off simulation

As the most authentic digital piano keyboard action in its class, Responsive Hammer III even reproduces the 'let-off' characteristic of acoustic piano actions. This subtle 'notch' sensation can be felt when playing the keys of a grand piano very gently, and may be used by experienced pianists to aid control when playing pianissimo passages.

SOUND



SOUND

CN301 CN301

The Sound of a Grand Piano: Three world-class instruments

Earning a reputation as the ‘premier pianos of Japan’, Shigeru Kawai instruments grace the stages of concert halls and musical institutions throughout the world, and are prized for their outstanding tonal clarity and exceptional dynamic range. The CN301 captures the magnificent tone of two Shigeru Kawai instruments, the flagship SK-EX Concert and medium-sized SK-5 Studio grand pianos, allowing musicians to enjoy the contrasting properties of each.



Learn more about Shigeru Kawai grand pianos >


CN301
CN301
CN301


In addition, the CN301 also features the distinctive sound of Kawai’s highly acclaimed EX concert grand piano, which has frequently been selected by professional pianists in such prestigious events as the Chopin, Tchaikovsky, and Rubinstein international piano competitions, among others. All three instruments are faithfully reproduced with full 88-key sampling using proprietary Harmonic Imaging™ sound technology, to establish a new standard in digital piano tonal quality.


Piano sound demos



CN301

Full 88-key stereo piano sampling

The rich, expressive sound of the SK-EX and EX concert grand pianos is at the heart of the CN301, with all eighty-eight keys of these world-class instruments painstakingly recorded, meticulously analysed, and accurately reproduced as high-fidelity digital waveforms.



Recording each key individually in this way – as opposed to stretching the same tone over several different notes – preserves the grand pianos’ unique harmonic character, and guarantees that the sound heard when playing any one of the CN301’s weighted keys is a faithful representation of the original acoustic source.



CN301

Harmonic Imaging technology

When playing a fine piano, the amount of pressure applied to the keyboard affects not only the volume of the sound produced, but also the unique tonal character of each note.  Therefore, in order to construct a realistic acoustic portrait of each grand piano, not only is each key recorded individually, but also at a wide variety of different volumes, ranging from gentle pianissimo to thunderous fortissimo.



The CN301 offers a highly detailed acoustic portrait, employing Kawai’s proprietary Progressive Harmonic Imaging sampling technology to ensure smooth tonal transitions across the keyboard and throughout the entire dynamic range.



CN301

Variety beneath your fingertips

Alongside the classically voiced SK-EX, SK-5, and EX, and grand piano sounds, the CN301 also showcases a selection of Jazz, Pop, and Modern variations suitable for a range of musical genres.  A traditional Kawai upright piano sound is also included, for pieces that suggest a feeling of nostalgia, or call for a slightly more intimate tonal character.



CN301

Personalised piano adjustments

The knowledge and skill of an experienced piano technician is essential to bring out the best of a fine acoustic piano. In addition to tuning each note, the technician also performs numerous regulation and voicing adjustments that allow the instrument to truly sing.



The CN301’s powerful Virtual Technician function simulates these refinements digitally, allowing discerning musicians to shape aspects of the selected piano’s character to suit their personal preferences.



Perform touch weight and voicing adjustments, regulate hammer and key release noises, and fine-tune string, damper, and cabinet resonances.  It is even possible to adjust the precise tuning, volume, and character of individual notes – all in real-time.



CN301

Powerful Effects & Reverb

The CN301’s powerful digital effects engine enhances the instrument’s superior core sounds, applying additional layers of detail and realism that bring performances to life.



Studio-quality reverb allows pianists to position themselves within one of six acoustic environments, ranging from a small practise room to an inspirational grand cathedral.

DELIVERY



DELIVERY

CN301 CN301

Premium audio technologies

Developed by Kawai R&D’s highly experienced audio engineering team, the CN301 features a redesigned speaker system and a brand new high quality power adapter. These components combine to deliver best-in-class audio quality, producing an extremely rich, clear sound with minimal distortion.


CN301
High quality sound hardware

The CN301 motherboard and sound hardware is engineered for precise signal conversion and optimum sound quality.  Advanced low-noise circuit designs and premium audio components combine to ensure crystal clear, high-fidelity sound with minimal distortion.

CN301
Premium speaker drivers

The CN301’s high quality speaker drivers were selected for their flat frequency response and ultra-low distortion characteristics, ensuring the most accurate reproduction of the original Shigeru Kawai SK-EX concert grand piano.



CN301

High-performance 4-speaker output system

Unrivalled in its price range, the CN301's high-performance 4-speaker output system is designed to reproduce the harmonic spectrum of an acoustic piano. Lower-range frequencies are delivered through the underside of the instrument, while mid and high frequencies are projected outward via top-mounted speakers, resulting in an expansive tone that closely mirrors the sound projection of a grand piano.


  • CN301
  • CN301
360° Speaker Diffusers



In addition to utilising high quality driver units, the CN301 top-mounted speakers also feature custom-engineered diffuser panels, which help to expand the piano’s tonal projection in all directions.



These additional components create a 360° sound field around the instrument, ensuring a natural piano sound for both the player, and those listening elsewhere in the room.



CN301

Low Volume Balance

The CN301’s stereo speaker system delivers an impressive 40W of output, providing enough power to fill a medium-sized room with it's beautiful Shigeru Kawai grand piano sounds.



Moreover, when playing through speakers at a reduced volume setting (so as not to disturb family members), the CN301’s Low Volume Balance feature intelligently adjusts keyboard touch and piano tone characteristics, allowing pianissimo passages to be played smoothly and more naturally.

FEATURES



FEATURES

CN301 CN301

The Variety of a Digital Piano: Convenience & Flexibility

Complementing the instrument's acclaimed Responsive Hammer III keyboard action and Progressive Harmonic Imaging piano sounds, the CN301 also offers a strong selection of digital piano features that further enhance one’s musical enjoyment.



Wireless Bluetooth® connectivity, USB audio record/playback, Dual, Split, and Four Hands keyboard modes, and a rich assortment of instrumental voices add greater variety to players’ performances, while the convenient metronome function and integrated lessons ensure that regular practise is both productive and engaging for aspiring pianists.



CN301

Integrated Bluetooth® connectivity

In addition to standard USB and MIDI jacks for connecting to computers or other instruments, the CN301 also features integrated Bluetooth® MIDI and Audio technologies that allow the instrument to communicate with supported smart devices wirelessly.



Once paired with a phone, tablet, or laptop, CN301 owners can enjoy a wide variety of exciting music-related apps that enhance their learning and playing experience, or stream audio from songs and videos directly through the instrument’s premium amplifier and speaker systems without the need to connect additional cables.



* Availability of Bluetooth® function may vary depending on market area.
* For more information please refer to the Bluetooth MIDI Information support page.



CN301

PianoRemote app

The CN301 is compatible with Kawai’s latest PianoRemote control app for iOS and supported Android devices. This app connects to the piano wirelessly via the instrument’s integrated Bluetooth feature, providing an effortless way to change sounds or adjust settings from an attractive touch-based user interface.

Learn more about the PianoRemote app >



Apple AppStoreGoogle Play Store



CN301

Additional sounds & playing modes

Supplementing the beautiful acoustic piano voices, the CN301 also features a strong selection of additional sounds, ranging from electric pianos and drawbar or church organs, to strings, human choirs, and synth pads. inviting musicians to add greater variety to their performances.



The Dual playing mode also allows two different sounds, such as grand piano and strings, to be layered together, while the Split and Four Hands modes divide the keyboard into two independent sections.



The latter feature is particularly useful in learning environments, allowing teacher and student (or student and student) to play together at the same time using a single instrument.


Instrument sound demos



CN301

Flexible USB connectivity

In addition to wireless functionality, the CN301 is also equipped with USB ports that allow the instrument to be connected directly to a computer for MIDI use, or to load and save data to USB memory devices.



This latter USB to Device functionality allows recorder songs stored within internal memory to be safely preserved on USB flash drives, or for standard MIDI files (SMF) downloaded from the internet to be played back and enjoyed using the instrument’s excellent Progressive Harmonic Imaging sounds without additional hardware or cables.



CN301

MP3/WAV Playback & Record

USB memory devices can also be used to play back MP3 or WAV audio files, allowing musicians to learn the chords or melody for a new piece, or to simply play along with their favourite songs.



It is even possible to record and overdub entire performances directly as MP3 or WAV audio files for emailing to family and friends, or casual listening away from the piano.



CN301

Grand Feel Pedal System

Reinforcing the CN Series’ reputation as the most realistic digital pianos in their price range is Kawai’s Grand Feel Pedal System.



This unique feature accurately replicates the position and individual weighting of the damper, soft, and sostenuto pedals of a Shigeru Kawai SK-EX concert grand piano to further enhance the CN301's acoustic piano-like authenticity.



CN301

Superior headphone experience

The CN301’s Spatial Headphone Sound (SHS) technology enhances the depth and realism of the instrument’s sound when listening through headphones or earphones. The player can select one of three different acoustic presets that adjust the spatial positioning of the sound, while also helping to reduce auditory fatigue when using earphones or headphones for extended periods of time.



In addition, the CN301 also allows players to select a variety of headphone types (Open, Semi-open, Closed, In-Ear, Canal, etc.) for an optimised listening experience.

Learn more about the Kawai SH-9 headphones >



CN301

Built-in lesson function

The CN301’s convenient lesson function allows aspiring pianists to learn piano with classical Czerny, Chopin, Burgmüller, Beyer, Bach, and Beethoven etudes, or a collection of songs from the popular Alfred's Basic, Adult, and Premier course books.



With a strong emphasis on acoustic piano realism, the CN301 also features traditional finger exercises, scales, and warm-up drills, and includes companion books for all classical scores to further aid one’s piano development.

* Included score books dependent on market location.

* Alfred lesson books sold separately.

DESIGN



DESIGN

CN301 CN301

Grand performance within a modern, premium cabinet

The CN301's modern cabinet incorporates a curved leg design, with minimalist toe blocks for additional stability.  Its flat fascia and tall upper board give the instrument a traditional, upright piano-like quality, while the extruded side panels contribute to a premium appearance that belies the CN301's affordable price.



CN301

Broad, adjustable music rest

The CN301’s broad music rest is engineered to accommodate the most ambitious musical works, with a high-quality surface and attractive round design.



As with a grand piano, the viewing angle of the instrument's music rest can be adjusted to suit the performer's playing position, or laid flat for convenience when notating scores or sketching musical ideas.



CN301

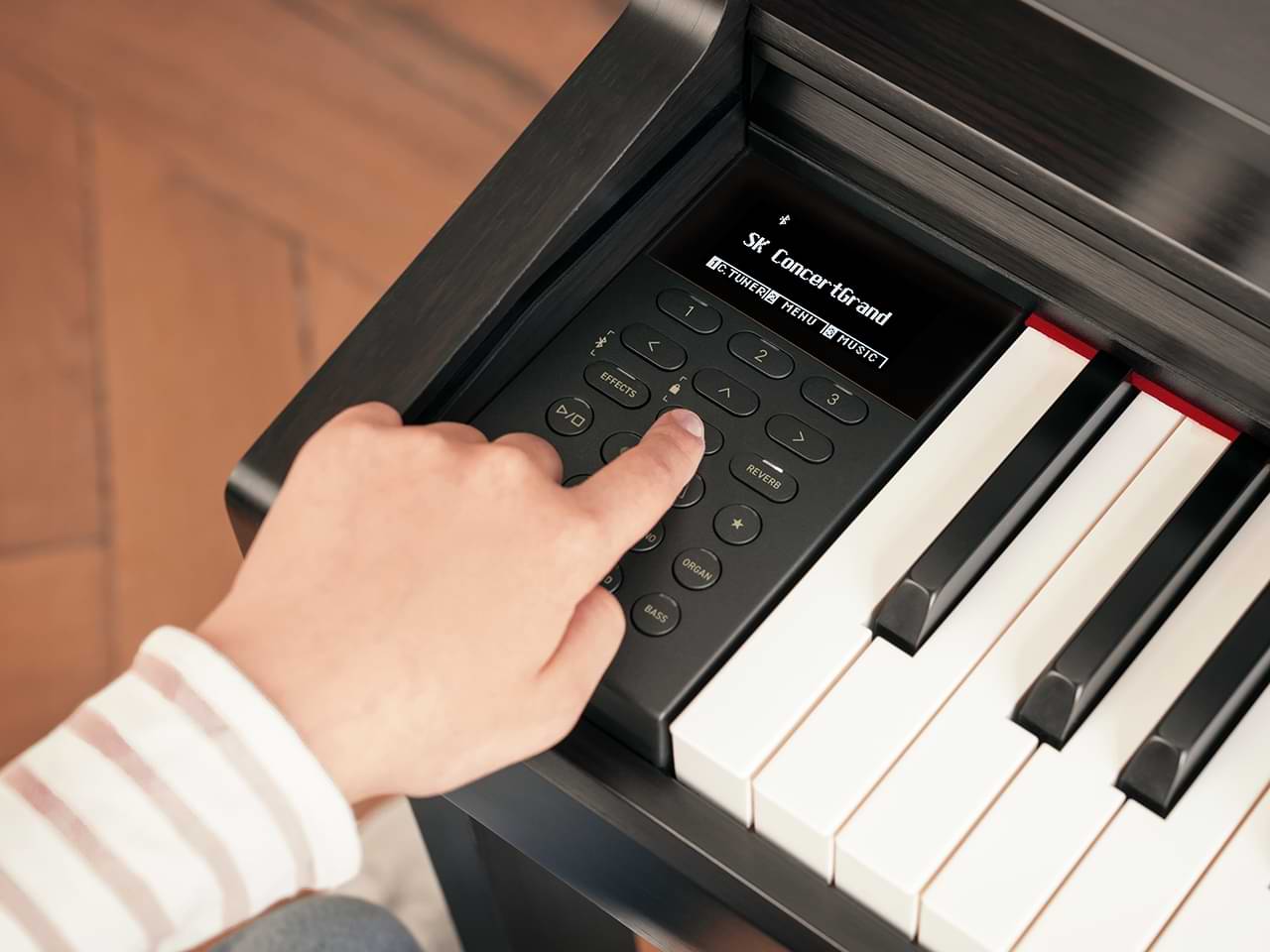

Easy to use interface with OLED display

The CN301 features an easy to use control panel neatly embedded within the left cheekblock, with a high resolution OLED display providing information about the currently select sound, function, or setting.



Unlike most other digital pianos in its class, the CN301's various sounds and functions are all selected directly from the control panel, without needing to press and hold buttons while remembering different key combinations.  This helps to simplify operation, and ensures that the piano can be enjoyed by even the youngest members of the family.



CN301 CN301

Cabinet Finishes

The CN301 is available in three attractive cabinet finishes: Premium Rosewood, Premium Satin Black, and Premium Satin White, allowing musicians to coordinate their piano with a range of modern interiors.

* Cabinet finish availability dependent on market location.

DIMENSIONS



DIMENSIONS

CN301

SPECIFICATIONS



SPECIFICATIONS

Keyboard ・ Responsive Hammer III action
 - 88 keys
 - Grade-weighted hammers
 - Ivory Touch white key surfaces
 - Let-off simulation
 - Triple sensor key detection
 - Counterweights
Pedal ・ Grand Feel Pedal System
 - Damper (with half-pedal support)
 - Soft (with half-pedal support)
 - Sostenuto
Sound
Piano Sound ・ Progressive Harmonic Imaging (PHI)
 - 88-key stereo sampling
 - SK-EX, SK-5, EX, K-60 recording
 - 256 note maximum polyphony
Piano Resonance ・ Acoustic Rendering
 - Damper Resonance
 - String Resonance
 - Undamped String Resonance
 - Cabinet Resonance
Piano Adjustment ・Virtual Technician (21 parameters)
 - Touch Curve (incl. User Touch Curve)
 - Voicing (incl. 88-key User Voicing)
 - Damper Resonance
 - Damper Noise
 - String Resonance
 - Undamped String Resonance
 - Cabinet Resonance
 - Key-off Effect
 - Fall-back Noise
 - Hammer Delay
 - Hammer Noise
 - Topboard Simulation
 - Decay Time
 - Release Time
 - Minimum Touch
 - Stretch Tuning (incl. 88-key User Tuning)
 - Temperament (incl. User Temperament)
 - Temperament Key
 - Key Volume (incl. 88-key User Key Volume)
 - Half-Pedal Adjust
 - Soft Pedal Depth

・Virtual Technician Smart Mode (10 presets)
No. of Sounds 45 voices
Reverb 6 types
Brilliance
Other Effects 24 types
Output System
Speakers 13 cm x 2 (low-mid range speakers)
(8 x 12 cm) x 2 (mid-high range speakers, with diffusers)
Output Power 40 W (20 W x 2)
Headphone Enhancements Spatial Headphone Sound
Headphone Type
Design
Display 128 x 64 pixel OLED
Key Cover Sliding type
Music Rest Collapsible type (3 angle adjustability)
Product
Size & Weight
Width 141 cm (55 1/2")
Depth 43.5 cm (17 1/3")
Height 87 cm (34 1/4) [music rest flat]
104.5 cm (41 1/4") [music rest raised]
Net Weight 47.5 kg (105 lbs.)
Packing
Size & Weight
Dimensions 156 (W) x 65 (D) x 46.5 (H) cm (without bench)
155 (W) x 60 (D) x 54 (H) cm (with bench)
Gross Weight 66 kg (without bench)
75 kg (with bench)
Available Finishes Premium Satin Black (CN301B)
Premium Satin White (CN301W)
Premium Rosewood (CN301R)
Functions
Basic Functions Dual
Split
Four Hands
Transpose
Tuning
Registration
Startup Setting
Low Volume Balance
Internal Songs Sound Demo 33 songs
Piano Music 29/42 songs *
Concert Magic 176 songs
Lesson Songs Burgmüller 25 (25 Etudes Faciles, Opus 100)
Czerny 30 (Etudes de Mécanisme, Opus 849)
Czerny 100 (Hundert Übungsstücke, Opus 139)
Beyer 106 (Vorschule im Klavierspiel, Opus 101)
J.S. Bach: Inventionen
Sonatinen Album 1
Chopin Walzer (Chopin waltzes series 1-19)
Alfred’s Premier Piano Course Lesson 1A
Alfred’s Premier Piano Course Lesson 1B
Alfred’s Basic Piano Library Lesson Book Level 1A
Alfred’s Basic Piano Library Lesson Book Level 1B
Alfred’s Basic Adult Piano Course Lesson Book Level 1
Internal Recorder Total Memory approximately 90,000 notes
No. of Songs 10 songs
Parts 2 part
Metronome Time Signatures 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8
Drum Rhythms 100 patterns
External Connectivity
Bluetooth * Bluetooth (Ver. 5.0; GATT compatible)
Bluetooth Low Energy MIDI Specification compliant
Bluetooth Audio (Ver. 5.1; A2DP compatible)
USB Audio Recorder Record/Playback MP3
WAV
SMF (Playback only)
Other Functions Overdubbing
Bluetooth Audio recording
App Functions PianoRemote (iOS/Android)
PiaBookPlayer (iOS/Android)
Connector Jacks Headphone 1 x 1/4", 1 x 1/8" Stereo jacks
MIDI USB-MIDI, Bluetooth MIDI *
Line Out 1/4" L/MONO, R [unbalanced]
Line In 1/4" L/MONO, R [unbalanced]
USB to Host
USB to Device
Others -
Power Supply
Power Consumption 17 W
Included Accessories
Power Power cable
AC adaptor (PS-154)
Bench Fixed-height or height-adjustable bench *
Headphones Headphone hook
Sheet Music Classical Piano Collection *
Classical Lesson Scores *
Finger Exercises
Others Warranty Card *
Owner's Manual
Internal Song Lists

* Depending on market location. Specifications are subject to change without notice.
